Bringing Back Discontinued Damper Kits as Made-to-Order Kits!

< What is CUSTOM MADE DAMPER? >
- Adjustable damper kits discontinued in the past are now resurrected and available as made-to-order kits.
- All the specifications, such as ride height drop and spring rate, are as same as the past ready-made items (except some vehicle models).
- Available for sale from only 1 set.
- Production leadtime is approximately 1.5 months after receiving an order.
- Available through TEIN distributors / dealers worldwide.

If you would like to have the kit made to the different specifications (spring rates / damping force), it will be provided as "Specialized Damper"

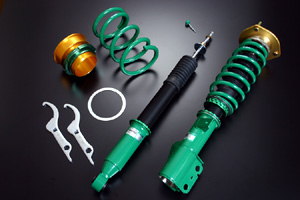

SUPER FLEX WAGON

Comfortable ride and bold low-down style come together!
Full-Length Ride Height Adjustable Full Spec Shock Absorber for Wagons and Minivans.

Concept

Wagon/ Minivan Lineup: SUPER FLEX WAGON has been especially designed for both wagons and minivans.
Bold Low-Down Styling: Enjoy the stylish and low-down form. Settings have been optimized to accommodate both styling & ride comfort for every vehicle model.
Comfortable Ride With Superior Handling Ability: Optimal damping force settings have been made, not just to offer pleasant ride comfort for city driving, but also to attain high-speed “flat ride” feel and offer a flexible yet stable ride.
Fully Compatible For Larger Tire & Wheel Sizes: Settings have been optimized using larger tire & wheel sizes for every model. The design has been set considering the use of larger wheel sizes and to maintain ample ride comfort.
Electronic Damping Force Controller (EDFC) Compatible: Compatibility with EDFC (sold separately) allows the driver to make damping force adjustments from within the vehicle. It eliminates unnecessary time raising the hood or taking off interior parts, and makes changing settings simple and enjoyable.
(EDFC is not compatible for some vehicle models)

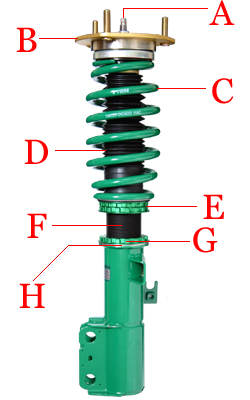

Specifications

A) 16-Level Damping Force Adjustment Feature (Compression/Rebound Together) Well established 16-level damping force adjustment (compression and rebound together) for optimizing vehicle performance and providing wider setting capability on all kinds of roads; from streets, winding roads to highways. Specially designed needle valve controls damping force linearly at all levels. Enjoy the wide range of settings available for your driving pleasure.
B) Reinforced Rubber Mount Exclusively designed reinforced rubber mount is used to maintain calmness and comfort. 2 types are available for Ft strut suspension; bearing enclosed (Patent Pending) and floating, to meet the vehicle’s characteristics. The all-new floating Thrust type enables more durability and smoother handling.
C) Spring Newly designed springs are used for improved traction and ride comfort.
D) Twin-Tube Structure Twin-tube structure is utilized for high durability and increased stroke length. Excellent ride comfort and “flat ride” feel in various road conditions, from city to highways, has been achieved because of superior damping force characteristics.
E) Spring Seat / Seat Lock Forged Aluminum is used for the spring seat and seat lock. It is designed to keep the Adjust Wrench in place, and to allow for easy ride height adjustment. (Patent Pending)
F) Rust Prevention on Threads All threading parts on shell cases are coated with specially formulated Fluorine for outstanding rust protection as well as for smoother ride height adjustment. Electroless nickel coating combined with powder coating is applied to lower brackets.
G) Full-Length Ride Height Adjustment Feature Full-length adjustment system with the use of movable lower bracket allows for separate adjustment of ride height and pre-load, making it possible to secure sufficient stroke and/or to change pre-load setting.
H) Conical Spring Washer A conical washer is inserted between the bracket lock and the lower bracket, to effectively prevent loosening of the bracket lock, under various conditions.
