Bringing Back Discontinued Damper Kits as Made-to-Order Kits!
CUCTOM MADE DAMPER
  • < What is CUSTOM MADE DAMPER? >
    • Adjustable damper kits discontinued in the past are now resurrected and available as made-to-order kits.
    • All the specifications, such as ride height drop and spring rate, are as same as the past ready-made items (except some vehicle models).
    • Available for sale from only 1 set.
    • Production leadtime is approximately 1.5 months after receiving an order.
    • Available through TEIN distributors / dealers worldwide.
If you would like to have the kit made to the different specifications (spring rates / damping force), it will be provided as "Specialized Damper"

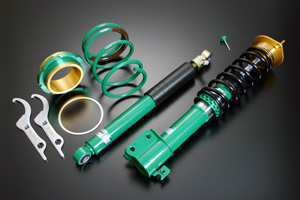

SUPER COMPACT
  SUPER COMPACT
Shock Absorber Exclusively for Compact Cars
Corresponds to All Kinds of Situations
Concept
Line Up for Compact and/or K car
SUPER COMPACT is exclusively designed for compact vehicles (with 1500cc or smaller engine / of 5 or less seating capacity) and K cars (mainly mini-van type).
Handsome Lowered Style
Lowering down gives sharp and dynamic appearance to compact vehicles. (Minimum clearance of 90mm needs to be secured on public road.)
Comfortable Ride
Discomfort is unacceptable for vehicles of daily use. SUPER COMPACT emphasizes ride comfort on city streets.
Crisp & Sporty Performance
Compact cars tend to have instability behavior as their center of gravity is bit high. With TEIN's know-how fully applied, SUPER COMPACT gives drivers joy of driving, even when just making a turn at an intersection.
Affordable Pricing
Having 'improvement in cost performance and basic performance' as our motto in developing the products, we are able to bring SUPER COMPACT to you at easy-to-afford price.
Various Driving Situations
16-level damping force adjustment (comp./rebound together) feature is applied to exhibit the vehicles' full potential, at various driving stage; on streets, winding roads and/or highways.
EDFC (Electronic Damping Force Controller) Compatible
SUPER COMPACT is compatible with EDFC (sold separately), which enables in-car damping force adjustment. With EDFC installed, you can change the damping force level easily from the driver's seat, without having to open the hood or moving the rear seats, to meet various conditions/preferences, from street, highway to winding road.

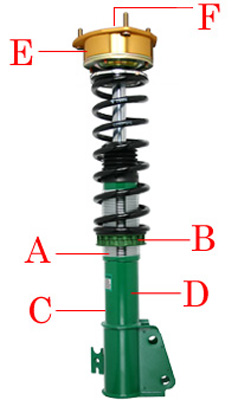

Specifications

A) Threading Type Ride Height Adjustment System
Threading type system enables adjustment in millimeter increments. Adjustment can be made within the range of about 20mm above or below from the standard height (actual value may vary). H.A.S. is used where spring and shock absorber are not integrated (non-coilover type), to enable adjustment by millimeters.		 SUPER COMPACT
B) Spring Seat / Seat Lock
Specially designed of wrought Aluminum. Help keeping Adjust Wrench in place for easy ride height adjustment.
C) 2-Coat/1-Bake Powder Coat
After being sprayed with powder paint as the base coat, the second layer of regular powder paint is applied. Then materials/parts are baked in a furnace. This procedure enables the painting to be unexceptionally superior in corrosion resistance.
D) Twin-Tube Structure
Twin-tube structure is adopted for high durability and securing sufficient stroke. Upsizing oil capacity, shell case and piston diameter provides superb damping force characteristics. Newly designed piston valve and base valve prevent noise such as swishing sound, to bring sophisticated ride performance.
E) Upper Mount
Reinforced rubber upper mount is designed for each vehicle applications, for realization of direct driving feel and handling incomparable with the original one, while still maintaining comfort and calmness. (OE mount is used for some models, if reinforced rubber mount is not available.)
F) 16-level Damping Force Adjustment Feature (Compression & Rebound Together)
Well established 16-level damping force adjustment (compression and rebound together) for optimizing vehicle performance and providing wider setting capability on all kinds of roads; from streets, winding roads to highways. Specially designed needle valve controls damping force linearly at all levels. Enjoy the wide range of settings available for your driving pleasure.
