Bringing Back Discontinued Damper Kits as Made-to-Order Kits!
CUCTOM MADE DAMPER
  • < What is CUSTOM MADE DAMPER? >
    • Adjustable damper kits discontinued in the past are now resurrected and available as made-to-order kits.
    • All the specifications, such as ride height drop and spring rate, are as same as the past ready-made items (except some vehicle models).
    • Available for sale from only 1 set.
    • Production leadtime is approximately 1.5 months after receiving an order.
    • Available through TEIN distributors / dealers worldwide.
If you would like to have the kit made to the different specifications (spring rates / damping force), it will be provided as "Specialized Damper"

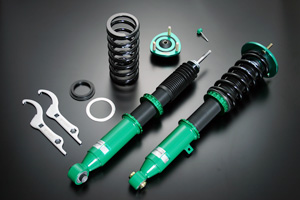

FLEX SEDAN
  FLEX SEDAN
Allowing both comfort and sportiness
Full-length ride height adjustable shock absorber exclusively for sedans
■Designed exclusively for sedans
■Settings aimed toward street driving
■Twin-Tube shock absorber
■Full-length ride height adjustment feature
■16-level damping force adjustment (compression and rebound together)
■EDFC compatible, for easy in-car damping force adjustment.(unavailable on certain vehicles)
Concept
"FLEX SEDAN" is a full-length ride height adjustable shock absorber designed exclusively for sedans, which delivers ride comfort during street driving with a firm look.
By calculating damping force and spring rate specifically for each vehicle, it offers excellent stability and direct handling response. This item is perfect for people who want to install larger wheels/tires and lower their vehicle with style.

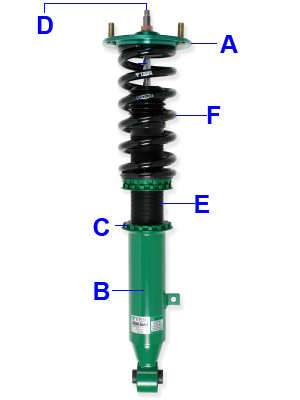

Specifications
A) Upper Mount
Depending on the vehicle, either pillow ball or rubber upper mount is equipped.
FLEX SEDAN
B) Twin-Tube Structure
Long stroke, less friction due to low internal gas pressure covers various street driving scenes.
C) Full-Length Ride Height Adjustment Feature
Full-length adjustment system with the use of movable lower bracket allows for separate adjustment of ride height and pre-load. Bump-to-rebump stroke ratio from 1G would not be affected if ride height is adjusted only by the use of lower bracket.
D) 16-level Damping Force Adjustment Feature
(Compression&Rebound Together)

Well established 16-level damping force adjustment (compression and rebound together) for optimizing vehicle performance and providing wider setting capability on all kinds of roads; from streets, winding roads to highways. Specially designed needle valve controls damping force linearly at all levels. Enjoy the wide range of settings available for your driving pleasure.
E) Rust-Proofing on Threads
All threading parts on shell cases are coated with specially formulated Fluorine, for outstanding rust protection as well as for smoother ride height adjustment. Electroless nickel coating combined with powder coating is applied to lower brackets.
F) Spring
Straight spring, made of no-sagging, high-tensile steel with tensile strength of 200kgf/mm2(1960N/mm2). (Except some models)
