Bringing Back Discontinued Damper Kits as Made-to-Order Kits!
CUCTOM MADE DAMPER
  • < What is CUSTOM MADE DAMPER? >
    • Adjustable damper kits discontinued in the past are now resurrected and available as made-to-order kits.
    • All the specifications, such as ride height drop and spring rate, are as same as the past ready-made items (except some vehicle models).
    • Available for sale from only 1 set.
    • Production leadtime is approximately 1.5 months after receiving an order.
    • Available through TEIN distributors / dealers worldwide.
If you would like to have the kit made to the different specifications (spring rates / damping force), it will be provided as "Specialized Damper"

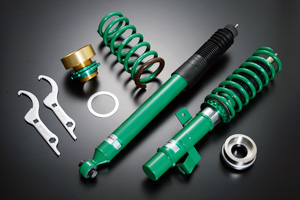

  BASIC WAGON
Stylish & Comfortable
Entry Model Shock Absorber for Wagons & Mini-Vans
Concept
Overwhelmingly User-Friendly
It would be a waste of talent, if you do not fully utilize the ride height adjustment feature for the reasons you feel it is difficult, you can quite figure out how to use and/or you think it's too much of a bother. For BASIC WAGON, popular threading type ride height adjustment feature, newly designed spring seat and seat lock are used for simple and easy operation. Even a novice user can enjoy various settings to the fullest.
Handsome Lowered Style
Lowering down gives sharp and dynamic appearance, with minimum road clearance of 100mm set as standard with front and back height well balanced.
Comfortable Ride
In pursuit of superior ride comfort than OE, we have carried out thorough test runs. BASIC WAGON does not cause bumpiness and/or stiffness that are too common in other manufacturers' products and/or low-down springs used in combination with OE dampers, but provides flexibility and tenacity.
For 3-4 passengers / Larger Tires/Wheels
BASIC WAGON is set up for comfortable and stable ride, most suitable for 3-4 passengers on board. We have used bigger size wheels and tires, which are expected to be most popular ones for the particular vehicles, when developing and testing, to meet wide varieties of needs.
Affordable Pricing
BASIC WAGON is used with OE mount and is set up with fixed damping force, for easy-to-afford pricing, without sacrificing basic performance. It provides attractive low-down style and superior performance at low price.

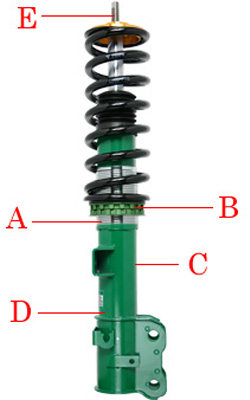

Specifications

A) Threading Type Ride Height Adjustment System
Threading type system enables adjustment in millimeter increments. Adjustment can be made within the range of about 20mm above or below from the standard height (actual value may vary). H.A.S. is used where spring and shock absorber are not integrated (non-coilover type), to enable adjustment by millimeters (except some models).		 BASIC WAGON
B) Spring Seat / Seat Lock
Specially designed of wrought Aluminum. Help keeping Adjust Wrench in place for easy ride height adjustment.
C) 2-Coat/1-Bake Powder Coat
After being sprayed with powder paint as the base coat, the second layer of regular powder paint is applied. Then materials/parts are baked in a furnace. This procedure enables the painting to be unexceptionally superior in corrosion resistance.
D) Twin-Tube Structure & Newly Designed Valves
Twin-tube structure is adopted for high durability and securing sufficient stroke. Upsizing oil capacity, shell case and piston diameter provides superb damping force characteristics. Newly designed piston valve and base valve prevent noise such as swishing sound, to bring sophisticated ride performance.
E) Upper Mount
BASIC WAGON kit is to be used with OE upper mount.
