Bringing Back Discontinued Damper Kits as Made-to-Order Kits!
CUCTOM MADE DAMPER
  • < What is CUSTOM MADE DAMPER? >
    • Adjustable damper kits discontinued in the past are now resurrected and available as made-to-order kits.
    • All the specifications, such as ride height drop and spring rate, are as same as the past ready-made items (except some vehicle models).
    • Available for sale from only 1 set.
    • Production leadtime is approximately 1.5 months after receiving an order.
    • Available through TEIN distributors / dealers worldwide.
If you would like to have the kit made to the different specifications (spring rates / damping force), it will be provided as "Specialized Damper"

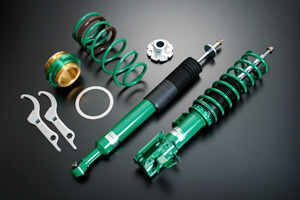

BASIC COMPACT
  BASIC COMPACT
Stylish & Comfortable
Entry Model Shock Absorber for Wagons & Mini-Vans
Concept
Line Up for Compact car
BASIC COMPACT is exclusively designed for compact vehicles (with 150cc or smaller engine / of 5 or less seating capacity) .
Handsome Lowered Style
Lowering down gives sharp and dynamic appearance to compact vehicles. (Minimum clearance of 90mm needs to be secured on public road.)
Comfortable Ride
Discomfort is unacceptable for vehicles of daily use. BASIC COMPACT emphasizes ride comfort on city streets.
Crisp & Sporty Performance
Compact cars tend to have instability behavior as their center of gravity is bit high. With TEIN's know-how fully applied, BASIC COMPACT provides crisp yet stable ride, which drivers can clearly feel even when just making a turn at an intersection.
Affordable Pricing
BASIC COMPACT is used with OE mount and is set up with fixed damping force, for easy-to-afford pricing, without sacrificing basic performance. It provides attractive low-down style and superior performance at low price.

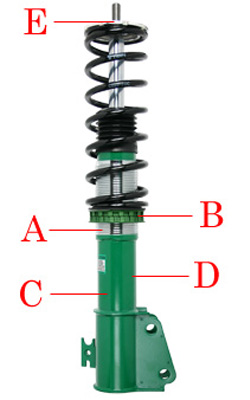

Specifications

A) Threading Type Ride Height Adjustment System
Threading type system enables adjustment in millimeter increments. Adjustment can be made within the range of about 20mm above or below from the standard height (actual value may vary). H.A.S. is used where spring and shock absorber are not integrated (non-coilover type), to enable adjustment by millimeters (except some models).
BASIC COMPACT
B) Spring Seat / Seat Lock
Specially designed of wrought Aluminum. Help keeping Adjust Wrench in place for easy ride height adjustment.
C) 2-Coat/1-Bake Powder Coat
After being sprayed with powder paint as the base coat, the second layer of regular powder paint is applied. Then materials/parts are baked in a furnace. This procedure enables the painting to be unexceptionally superior in corrosion resistance.
D) Twin-Tube Structure
Twin-tube structure is adopted for high durability and securing sufficient stroke. Upsizing oil capacity, shell case and piston diameter provides superb damping force characteristics. Newly designed piston valve and base valve prevent noise such as swishing sound, to bring sophisticated ride performance.
E) Upper Mount
BASIC COMPACT kit is to be used with OE upper mount.
