New in 2016 Basic Models for Street Use / Superior Quality Made Affordable! STREET ADVANCE Z / STREET BASIS Z EDFC5

Specifications

Incredibly Low Price / Shock Absorber for Street Use with an Astonishing Price Tag!
Full-Length Adjustable Twin-Tube Uses OE Mounts Durable & Reliable

Only STREET ADVANCE Z

Damping Force Adjustable Damping Force Adjustable EDFC Compatible
STREET ADVANCE Z Classic
For vehicle models, of which sourcing original parts is almost impossible, including vintage/antique cars.
Damping force adjustment feature allows for various setting capabilities to suit different driving style and preferences.

Product Specifications

Incredibly Low Price

A New Formula and a New Structure!

Making an Incredibly Low Price a Reality

'Repairable' Unit of Parts 'Sealed Structure' Fixed Unit

About the Sealed Structure

The top end of the shell pipe is narrowed, oil and gas are injected, and the whole unit is sealed by crimping the metal.

This new approach massively shortens the production process. As a result, we have succeeded in vastly cutting production cost.

Partial Production Process of STREET ADVANCE Z and STREET BASIS Z

Partial Production Process

Thread-Type Adjustment

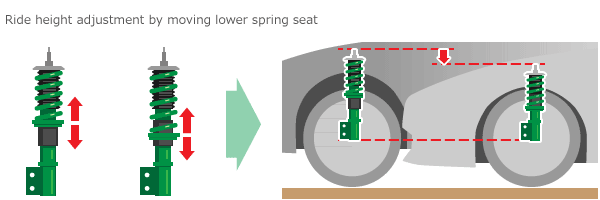

The ride height can be adjusted by moving the lower spring seat up or down.
Characteristic of this system is its simple structure and ease of use.

Ride height adjustment by moving lower spring seat

Twin-Tube

Compared to the regular mono-tube system, twin-tube attains longer stroke with a smaller repulsive force, resulting in high ride comfort.

Mono-Tube / Twin-Tube

Roads may have all sorts of surface conditions. This calls for shock absorbers with ample stroke, that operate smoothly.

Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speed.

Uses OE Mounts

STREET ADVANCE Z and STREET BASIS Z use the vehicle's original upper mounts (not included in our product kit).

OE Mounts

Durable & Reliable

Optimal Dust Boot

Dust Boot

Thanks to its smooth compression and high durability, the dust boot guards the piston rod from damage, and keeps foreign material out of the shock absorber.
(Some vehicles use their OE dust boots)

No-Sag Spring

Spring

Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2), our springs are outstandingly sag-proof and boast extreme resiliency.

Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. Our high-quality springs can be used without worries, in any conditions.

High-Performance Damper Oil

Damper Oil

Since TEIN's damper oil maintains a stable viscosity in a broad temperature range, it sustains smooth stroke and reliable damping force in a variety of circumstances.

Due to excellent anti-foaming properties, it's resistant to cavitation (bubble forming). Since it withstands high heat too, it's suitable for intense sport driving as well.

Furthermore, the damper oil keeps up its superior performance long-term, because it's resistant to deterioration over time.

Rust-Proofing

TEIN-Green Powder Coating

Powder Coating

A bright TEIN-green powder paint is used on the shock absorber's shell case. Our powder coating technique produces an extremely strong and durable barrier. No harmful organic solvents are used, for minimal pollution.

Superior durability and corrosion resistance are achieved by TEIN's patented 2-Layer, 1-Bake powder coating method, which uses 2 layers of anti-rust paint on a blasted surface.
(Japanese patent number 4347712)

Special Surface Treatment 'ZTP Coating'

ZTP Coating

Our unique ZTP Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance.

With zero claims for stuck parts due to rust in 2,000,000 shock absorbers, TEIN shock absorbers are amazingly rustproof. We're confident of customer satisfaction even in coastal areas or regions with heavy snowfall.

>>We're confident of TEIN shock absorbers' surface treatment!

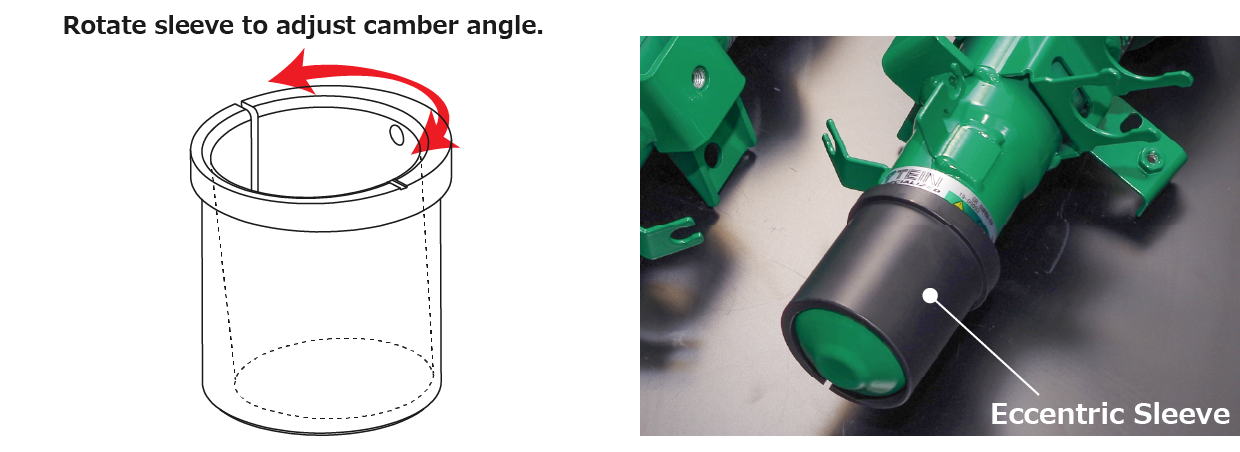

Camber-Adjustable Insert-Type Strut with Off-Center Sleeve

* For some models

For some vehicle models with insert-type struts, eccentric sleeves are used to enable camber angle adjustments. By rotating the sleeves, camber angle can be adjusted to either negative or positive, from the standard position.

Only STREET ADVANCE Z

Damping Force Adjustable

*STREET ADVANCE Z Only

STREET ADVANCE Z features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound.
Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

Adjustment Dial

Adjust to Suit Driving Conditions

The above are examples; actual settings vary according to the vehicle's circumstances.

EDFC Compatible

*STREET ADVANCE Z Only

The EDFC Series offer easy damping force adjustment from the driver's seat.*
* Some vehicle models are not compatible

A motor instead of adjustment dial

A motor instead of adjustment dial

Please note: the example in the photo is not STREET ADVANCE Z

Remote adjustment from the cockpit!

EDFC Series Lineup

EDFC5

5

Automatic & Flexible Adjustment with New Jerk-Reactive Control
for Enhanced Driving Experience

Individual Wheel Control Jerk-Reactive Adjustment

Cornering-Reactive Accel/Deceleration-Reactive

Speed-Reactive Wireless Control AI (Learning Function)

EDFC ACTIVE PRO

EDFC ACTIVE PRO

Electronic Damping Force Controller, Featuring Auto-Adjustment

Individual Wheel Control Cornering-Reactive

Accel/Deceleration-Reactive Speed-Reactive Wireless Control

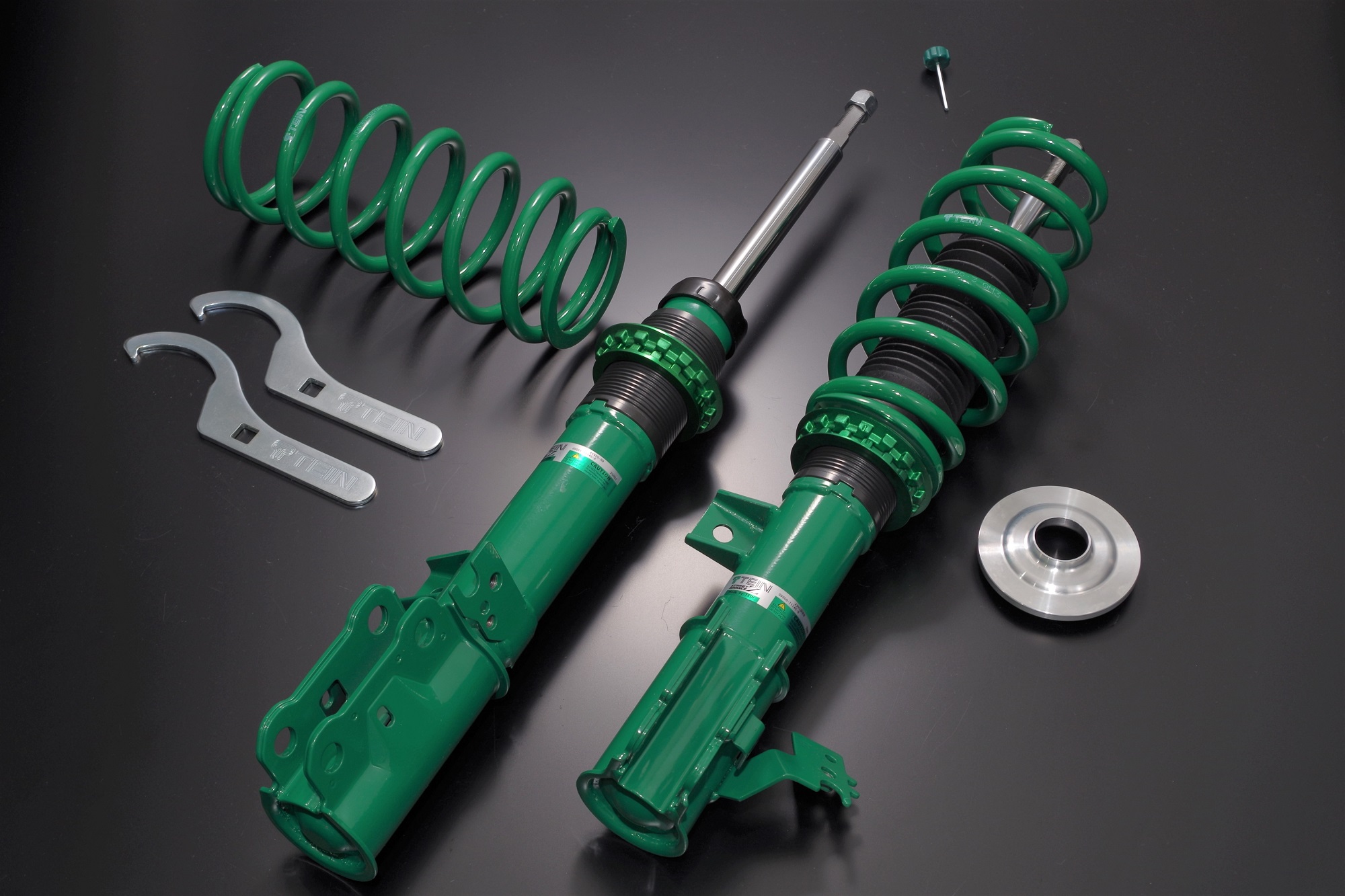

STREET ADVANCE Z TOYOTA CAMRY HYBRID AVV50

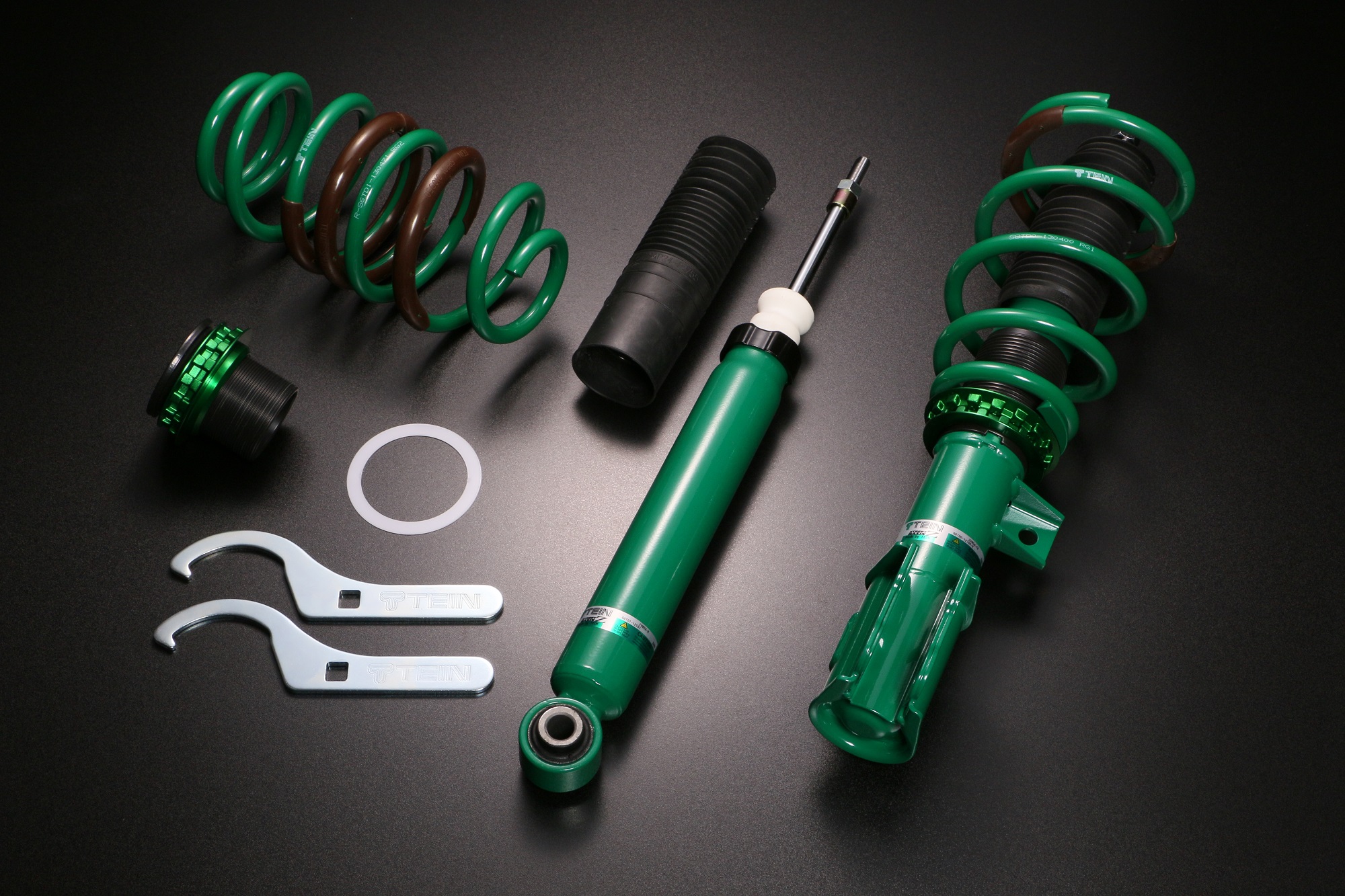

STREET BASIS Z TOYOTA PRIUS ZVW50
