Eliminates Compliance, for Sharper and More Direct Steering Feel. |
|

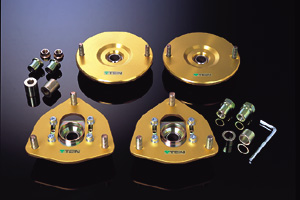

TEIN's pillow ball (spherical bearing) upper mount is designed for each individual model of the vehicle.
By remaining the positioning design of upper spring and shock absorber close to manufacture's standards, TEIN's pillow ball upper mount keeps height change to the minimum and maintains the stroke center. |
|
■The rubber bush is replaced with a pillow ball which eliminates the load input compliance, reduces the change of alignment to improve the grip of the tire.
*NMB's (The world's top spherical bearing manufacture) pillow ball is used.
■Ultra duralumin A2017S-T4 (aircraft material) is used for upper seats and adjusting plates with anodized aluminum to have maximum strength and durability.
■For the Mcpherson strut suspension(only for front) models, the camber angle is adjustable. This creates wide varieties of different suspension settings according to the road and tire conditions.
■High tension material S45C is used for serration bolts. As it is already inserted with high press, installation time has been completely reduced. With the original long bolt design, it can be easily mounted and gives enough thread for the strut tower bar to be fitted. |
|
Model |
Chassis
Code |
Front |
Rear |
Note |
Type |
Part No.
MSRP excl Tax |
Type |
Part No.
MSRP excl Tax |
TOYOTA |
LEVIN,
TRUENO |
AE86 |
AP |
PAT30-31PFR
JPY 43,000 |
|
|
Low Caster Setting |
MR2 |
SW20 |
AP2 |
PAT04-31PFR
JPY 31,000 |
|
|
Ft: 2-point fixed mount |
NISSAN |
SILVIA, 180SX |
S13 |
AP |
PAN20-31PFR
JPY 29,000 |
RS |
PRN21-31S70
JPY 26,000 |
|
SILVIA |
S15 |
AP |
PAN20-31PFR
JPY 29,000 |
|
|
|
CEFIRO, LAUREL |
A31,
C33 |
AP |
PAN20-31PFR
JPY 29,000 |
|
|
|
STAGEA |
WGC34 |
AP |
PAN20-31PFR
JPY 29,000 |
|
|
|
HONDA |
CIVIC, CR-X |
EF9,EF8 |
|
|
RS |
PRH08-31S70
JPY 27,000 |
Ft: For I.D.60/I.D.65 Spring
Rr: For I.D.70 Spring |
CIVIC,
INTEGRA |
EK9,DC2 |
RS |
PRH08-31S70
JPY 27,000 |
RS |
PRH08-31S70
JPY 27,000 |
For I.D.70 Spring |
MITSUBISHI |
MIRAGE |
CJ4A |
AP |
PAR38-31PFR
JPY 30,000 |
RS |
PRR29-31S65
JPY 38,000 |
|
LANCER
EVOLUTION II/III |
CD9A,CE9A |
|
|
|
PRR29-31S65
JPY 38,000 |
|
LANCER
EVOLUTION V/VI |
CP9A |
AP |
PAR38-31PFR
JPY 30,000 |
RS |
PRR29-31S65
JPY 38,000 |
For EVO V with driveshaft problem already fixed, and EVO VI |
LANCER
EVOLUTION VII/VIII/IX |
CT9A |
AP |
PAR52-31PFR
JPY 30,000 |
RS |
PRR29-31S65
JPY 38,000 |
|
FTO |
DE3A |
AP |
PAR38-31PFR
JPY 30,000 |
RS |
PRR29-31S65
JPY 38,000 |
|
SUBARU |
IMPREZA |
GDB,GDA |
AP |
PAS28-31PFR
JPY 29,000 |
|
|
|
|
|
AP: Camber Adjustable Plate Type
AP2: 2 Point Camber Adjustable Plate Type (Center:12mm Offset)
RS: Center Locked Solid Type
RP: Center Locked Plate Type
#1:When install to TEMS model,you need other pillow-nut.
#2:Can be used only with 60 front other than TEIN HR/HA dampers.
#3:Available in 2 types; for TEIN shock absorbers, and for original or other original type shock absorbers.
#4:Only adaptable for TEIN height adjustable shock absorbers and rear 2 piece upper mounts.
#5:Rr: You cannot install to original shock absorbers or TEIN shock absorbers (sold without pillowball upper mounts). This is Repair parts for TEIN shock absorber and pillowball upper mounts set.
#6:Ft-CP9A.For Evo.6 or short-type drive shaft. |
|
• For the AP2 type, adjustment could be difficult when used with original type springs.
• The pillow nuts and pilow collars attached are designed for original shaft top size.
• Please contact us when using with shock absorbers with different shaft top sizes (ex. Bilstein, Koni)
• TEIN pillowball upper mounts work best when used with the following.
original type shaft + original upper spring seat
original type shaft + TEIN aluminum upper spring seat
(the upper springs are incorporated for the RS and parts of the RP types)
• Adjustments for the camber are limited when using normal type springs.
• List shows the Price(YEN) for one set (right and left) |
|
|
