| Cooling specialists, Fléx, brings you new high efficiency cooling parts. |
|
|
| Unique radiation coating? |
| ⇒Heat radiation from electromagnetic wave, increases radiation cooling efficiency. |
|
|

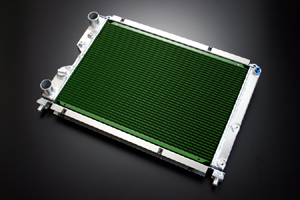

| RADIATOR |
|
 |
|
|
| ■ |
Lightweight & superior heat resistant aluminum. |
| ■ |
Unique radiation coating (green) within the core for improved cooling. |
| ■ |
Floating mechanism (patent pending) and adjuster function (patent pending) |
| ■ |
Lightweight frame for easy installation, and boring process used for increased strength. |
| ■ |
Lightweight aluminum drain bolt with wire lock. |
| ■ |
Equipped with 1/8PT sensor base, useful when installing non-OE water gauges. |
| ■ |
Includes a caution plate with serial numbers. |
| ■ |
1 Year Manufactures Warranty |
| * Not Compatible for some vehicle models. |
| *Discontinued and only available while supplies last. |
|
|
| |
|
| |
| Temperature Measurement Data (Vehicle: ALFA ROMEO 156 GT-A) |
| |
OE 25mm(Brass) |
Fléx 36mm (Aluminum)
Radiation Coating |
| Location |
Speed |
Traffic
Condition |
IN |
OUT |
Diff. in Temp |
IN |
OUT |
Diff. in Temp |
| Start |
0Km/h |
Idling |
91 |
87 |
4 |
84 |
74 |
10 |
| Public Road |
0 - 20Km/h |
Traffic Jam |
90 |
85 |
5 |
82 |
72 |
10 |
| 20 - 60Km/h |
Normal |
86 |
80 |
6 |
78 |
66 |
12 |
| Test Course |
80Km/h |
- |
82 |
75 |
7 |
73 |
61 |
12 |
| 100Km/h |
81 |
73 |
8 |
72 |
58 |
14 |
| 120Km/h |
79 |
70 |
9 |
69 |
53 |
16 |
| Public Road |
0 - 20Km/h |
Traffic Jam |
86 |
80 |
6 |
76 |
63 |
13 |
| Test Course |
80Km/h |
- |
80 |
72 |
8 |
73 |
59 |
14 |
| 100Km/h |
78 |
69 |
9 |
71 |
55 |
16 |
| 120Km/h |
76 |
66 |
10 |
69 |
52 |
17 |
| Public Road |
20 - 60Km/h |
Normal |
84 |
79 |
5 |
76 |
62 |
14 |
| Arrive |
0Km/h |
Idling |
94 |
88 |
6 |
84 |
71 |
13 |
|
| * Measured with No thermostat & Electric fan |
| Measured on 17th March 2008, average outdoor temperature: 19°C |
| Measured at start - engine start up, after 10minutes. |
| Measured at arrival - after arrival, with engine running, after 10minutes. |
|

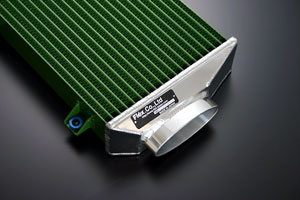

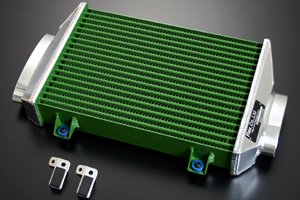

| INTERCOOLER |
|
 |
|
 |
| ■ |
Lightweight & superior heat resistant aluminum. |
| ■ |
Unique radiation coating (green) within the core for improved cooling. |
| ■ |
Floating mechanism (patent pending) and adjuster function (patent pending) |
| ■ |
Mirror finish fully polished tanks. |
| ■ |
Designed to balance pressure release and cooling efficiency. |
| ■ |
Includes a caution plate with serial numbers. |
| ■ |
1 Year Manufactures Warranty |
| * Not Compatible for some vehicle models. |
| *Discontinued and only available while supplies last. |
|
|
| |
 |
| |

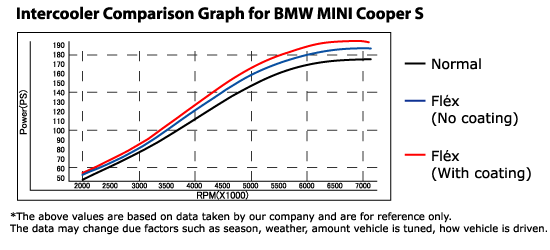

| Intercooler Efficiency Specification Chart for BMW MINI (R53） |
| |
IN |
OUT |
Diff. in Temp |
Fléx
(With Unique Radiation Coating) |
63 |
35 |
28 |
Fléx
(Without Unique Radiation Coating) |
64 |
45 |
19 |
| OE |
67 |
58 |
9 |
|
| Measurement = °C |
| |
|
| |
|
|
|
|
